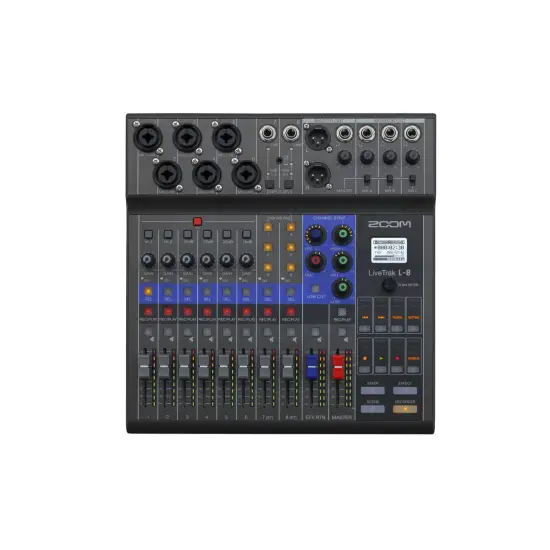

Zoom - MESA MISTURA LiveTrak L-8:

The Board for Creators

Creators are evolving—and so are we. Zoom LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package.

Power to the Podcast

Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom’s famous audio performance with features made for podcasters.

Sound Pad Magic

Just press a button to play intros, outros, jingles, ads and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.

First-Time Caller, Long-Time Listener

Remote interviews are a snap with the L-8; just connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack and more.

Freedom of Speech

Zoom’s preamps are famous for a good reason: they’re transparent, powerful and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate.

A Track for Everyone

The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.

8-channel mixer (6 combo, plus 2 TS)
12-track simultaneous recording, 10-track playback
Mix-Minus function preventing audio feedback from dial-in guests
TRRS connection and included TRRS cable for phone connectivity
6 assignable Sound Pads, with 13 preset sounds
4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
3-band EQ and a low-cut function
7 scene memories for storing mixes
12-in / 4-out USB audio interface
Class-compliant mode (for iOS compatibility)
Battery operated with four AA batteries or a USB power supply
Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously

- INPUTS AND OUTPUTS / NUMBER OF CHANNELS:

- INPUTS:

- MIC/LINE: 6

- LINE: 2

- OUTPUT:

- MASTER OUT: 1

- MASTER OUT (PHONES): 1

- MONITOR OUT (PHONES): 3

- INPUTS:

- MIC/LINE:

- Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

- Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)

- Input impedance: XLR: 3 kΩ, TRS: 3 kΩ/1 MΩ (when Hi-Z ON)

- Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS), +24 dBu when –26dB switch ON (at 0 dBFS)

- Phantom power: +48 V

- LINE:

- Type: TS phone jack

- Input impedance: 10 kΩ

- Maximum input level: +3 dBu

- SMARTPHONE CONNECTION JACK:

- Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)

- Input impedance: 10 kΩ

- Maximum input level: +3 dBu

- OUTPUT:

- MASTER OUT:

- Type: XLR jacks (balanced)

- Maximum output level: +14.5 dBu

- Output impedance: 100 Ω

- MASTER OUT (PHONES):

- Type: Standard stereo phone jack

- Maximum output level: 10 mW + 10 mW (60Ω load)

- Output impedance: 10 Ω

- MONITOR OUT (PHONES):

- Type: Standard stereo phone jack

- Maximum output level: 10 mW + 10 mW (60Ω load)

- Output impedance: 10 Ω

- BUSES:

- MASTER: 1

- MONITOR: 3

- SEND EFX: 1

- CHANNEL STRIP:

- LOW CUT: 75 Hz, 12 dB/OCT

- EQ:

- HIGH: 10 kHz, ±15 dB, shelving

- MID: 2.5 kHz, ±15 dB, peaking

- LOW: 100 Hz, ±15 dB, shelving

- LEVEL METER: 9 segments

- SEND EFFECTS: 8 types

- RECORDER:

- MAXIMUM SIMULTANEOUS RECORDING TRACKS: 12 at 44.1/48/96 kHz

- MAXIMUM SIMULTANEOUS PLAYBACK TRACKS: 10

- RECORDING FORMAT: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

- RECORDING MEDIA:

- 4GB – 32GB SDHC-compliant cards (Class 10 or higher)

- 64GB – 1TB SDXC-compliant cards (Class 10 or higher)

- AUDIO INTERFACE:

- 44.1/48 kHz:

- Recording: 12 channels

- Playback: 4 channels

- BIT DEPTH: 24-bit

- INTERFACE: USB 2.0

- SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE:

- WINDOWS:

- OS: Windows® 8.1 / 10 / 11 (32bit/64bit)

- CPU: Intel® Core i3 or faster*

- USB: USB 3.0/USB 2.0

- * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.

- Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

- MAC:

- OS: macOS 10.12 ~ 13

- CPU: Intel® Core i3 or faster

- USB: USB 3.0/USB 2.0*

- * Operation is not guaranteed when used with USB hubs or expansion cards.

- IPHONE/IPAD:

- OS: iOS 10 ~ 17, iPadOS 15 ~ 17

- * Apple Lightning-to-USB Camera Adapter required.

- CARD READER:

- CLASS: Mass storage USB 2.0 High Speed

- SAMPLING FREQUENCY:

- 44.1/48/96 kHz

- FREQUENCY RESPONSE:

- 20 Hz – 20 kHz: –1 dB at 44.1 kHz

- 20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o'clock)

- EQUIVALENT INPUT NOISE:

- –121 dBu or less (IHF-A) at +54dB/150Ω input

- DISPLAY:

- LCD with backlight (96×64 resolution)

- POWER:

- 4 AA batteries (alkaline, lithium, or rechargeable NiMH)

- AC adapter (ZOOM AD-17): DC 5V/1A

- Supports USB bus power

- ESTIMATED CONTINUOUS RECORDING TIME USING BATTERIES:

- Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15 sec, BATTERY SAVING is ON and headphone impedance is 62Ω):

- Alkaline batteries: about 1.5 hours

- NiMH batteries (1900 mAh): about 3 hours

- Lithium batteries: about 5 hours

- The above values are approximate.

- Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

- POWER CONSUMPTION: 5 W

- EXTERNAL DIMENSIONS:

- 268 mm (W) × 282 mm (D) × 74 mm (H)

- WEIGHT (UNIT ONLY):

- 1.56 kg
