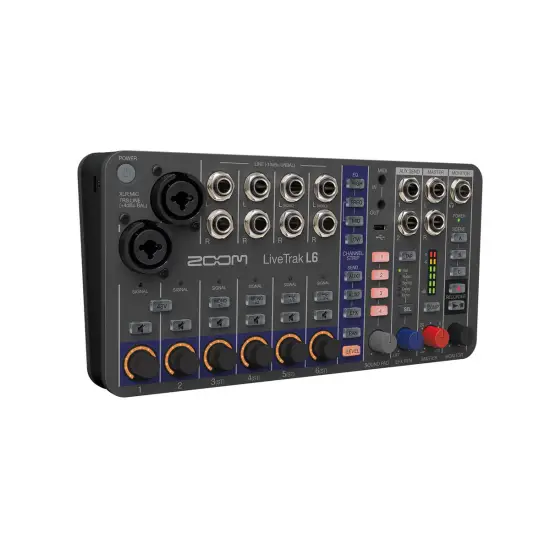

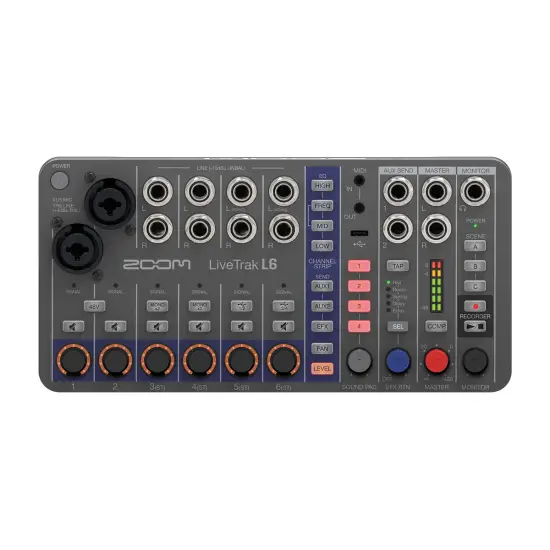

Zoom MESA MISTURA LiveTrak L 6

315.00€

Baseada em 0 comentários - Escreva um comentário

Qtd

Adicionar

COMPRAR Comprar

Adicionar à lista de favoritos Comparar este produto

Simula no checkout após adicionar ao carrinho.

Com a SeQura, flexível e sem complicações.

Descrição
Características Fornecedor

Zoom - MESA MISTURA LiveTrak L-6:

Small Just Got Very Big

The LiveTrak L6 is our most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, perfect for bands, synth players, live streaming, and more.

Full Featured Mixer

Don’t let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a 3-band mid-sweepable EQ.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing.

32-Bit Float Technology

With 32-bit float and pristine sounding preamps, you will get beautiful clip-free audio every time, without the need to set gain.

Learn more about 32-bit float technology.

Use it Anywhere

Use four AA’s for up to 3 hours of power or a USB battery for extended portable use.

10-channel ultra-Compact digital mixer
2 XLR/TRS Combo inputs + 4-Stereo inputs
12-track simultaneous recording
MIDI In/Out for mixer control and USB MIDI interface
3 Scene memory for storing mixer and tempo setting
32-bit float multi-track recording to micro SD card
5 Internal Send Effects
2 AUX send outputs
4 Assignable sound pads (sample player)
3-Band EQ with MID freq control for each channel
Headphone output + Master output

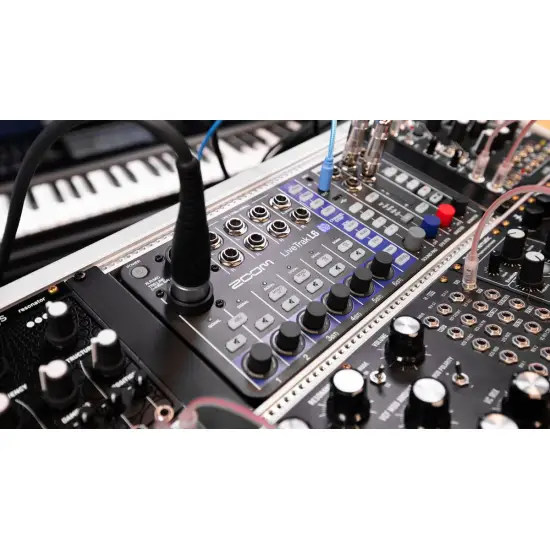

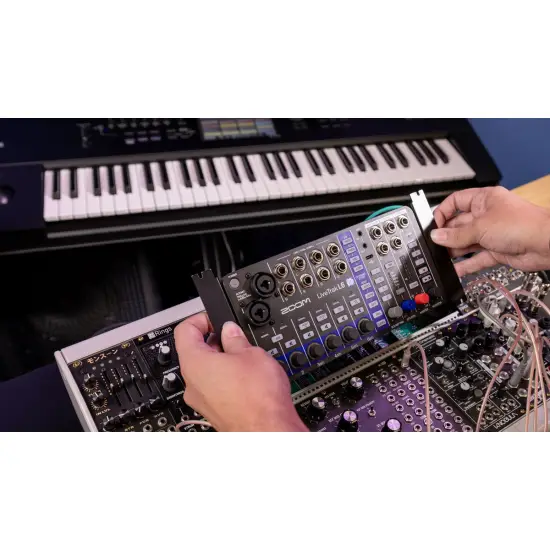

Eurorack compatible
12-in / 4-out Audio interface
4 AA battery power operation or USB power

Input and Output Channels:

- Inputs:

- MIC/LINE (mono): 2

- LINE (stereo): 4

- Outputs:

- AUX SEND (mono): 2

- MASTER (stereo): 1

- MONITOR (stereo): 1

Inputs:

- MIC/LINE Connectors:

- 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

- Input Gain: Adjustment unnecessary (dual A/D converter circuits used)

- Input Impedance:

- XLR: 3.8 kΩ or more

- TRS: 39 kΩ or more

- Maximum Input Level:

- XLR: +4 dBu

- TRS: +24 dBu

- Phantom Power: +48 V (Channel total of 10 mA or less)

- LINE Connectors:

- 8 TS phone jacks (balanced)

- Input Impedance: 10 kΩ

- Maximum Input Level: +9 dBu

Outputs:

- AUX SEND Connectors: 2 TRS phone jacks (impedance balanced)

- Maximum Output Level: +9.5 dBu

- Output Impedance: 147 Ω

- MASTER Connectors: 2 TRS phone jacks (balanced)

- Maximum Output Level: +15 dBu

- Output Impedance: 147 Ω

- MONITOR Connector: TRS phone jack

- Maximum Output Level: 50 mW + 50 mW (63 Ω load)

- Output Impedance: 14.7 Ω

Buses:

- MASTER: 1

- AUX SEND: 2

- SEND EFX: 1

Channel Strip:

- 3 BAND EQ:

- HIGH: 10 kHz, ±15 dB, shelving

- MID: 100 Hz – 8 kHz, ±15 dB, peaking

- LOW: 100 Hz, ±15 dB, shelving

Level Meters:

- 6 segments

Send Effects:

- 5 types

Recorder:

- Maximum Simultaneous Recording Tracks: 12

- Maximum Simultaneous Playback Tracks: 2

- Recording Formats: 48 kHz, 32-bit float, mono/stereo WAV

- Recording Media:

- microSDHC memory cards (Class 10 or higher)

- microSDXC memory cards (Class 10 or higher)

Audio Interface:

- Input and Output Channels:

- Input: 12 channels

- Output: 4 channels

- Sampling Frequency: 48 kHz

- Bit Depth: 32-bit float / 24-bit

- Interface: USB 2.0

Card Reader:

- Mass storage class USB 2.0 High Speed

Sampling Frequency:

- 48 kHz

Frequency Response:

- 20 Hz – 20 kHz / -1.0 dB

Equivalent Input Noise:

- -120 dBu or less (IHF-A) at 150Ω input

Power:

- 4 AA Batteries: Alkaline, Lithium, or Rechargeable NiMH

- AC Adapter: ZOOM AD-17 (DC 5V/1A)

- USB bus power is supported

- Estimated Continuous Recording Time Using Batteries:

- Alkaline batteries: About 3 hours

- NiMH batteries (1900 mAh): About 3.5 hours

- Lithium batteries: About 7 hours

- (Conditions: 12-track recording, phantom power off, headphones used (63Ω load), no MASTER output connections)

Power Consumption:

- 5 W maximum

Dimensions:

- 223 mm (W) × 114 mm (D) × 46.5 mm (H)

Weight:

- Main unit only: 526 g

- Including batteries: 618 g

Note: 0 dBu = 0.775 Vrms

SKU: AUD5682

EAN: 4515260030163
