LD Systems - SISTEMA SOM Amplificado MAUI 11 G2:

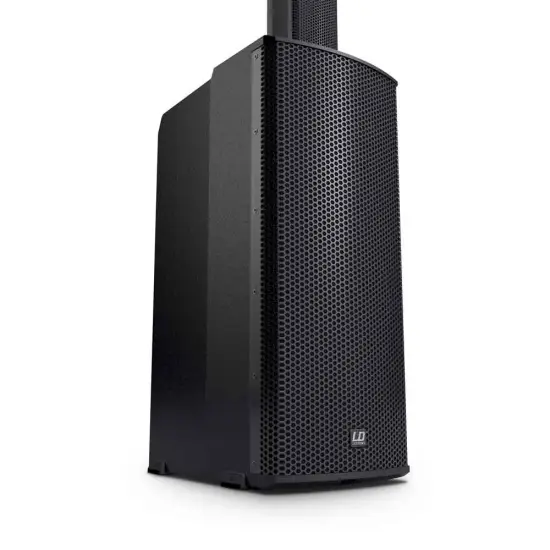

A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.


• All-in-one column speaker for PA and monitor applications
• 1,000 watts peak Class-D system power offer high performance with a low weight
• Powerful bass reproduction with 3 x 6.5" woofers
• Balanced mids thanks to the 8 x 3" full-range speakers
• Precise and silky highs with 2 x 1" high frequency drivers
• Increased range and wider coverage through the array arrangement
• Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
• Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology
• Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming
• Two-piece column for compact transport

General:
• Product type: PA Complete Systems
• Type: active
• Colour: Black
• Max. SPL (peak): 124 dB
• Frequency response: 50 - 20000 Hz
• Dispersion (H x V): 120° x 20 °
• Overall height: 2030 mm
• Weight: 24,9 kg

Woofer characteristics
• Low/mid driver dimensions: 3 x 6.5 "
• Woofer size: 3 x 165.1 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 1.5 "
• Woofer voice coil (mm): 38.1 mm
• Cabinet construction: vented
• Cabinet material: 15 mm Plywood
• Cabinet surface: texture paint
• Subwoofer width: 285 mm
• Subwoofer height: 650 mm
• Subwoofer depth: 373 mm
• Subwoofer weight: 16.9 kg

Mid/Hi System
• Midrange size: 8 x 3 "
• Midrange size: 8 x 76.2 mm
• Midrange magnet: Ferrite
• Midrange brand: Custom-made
• Midrange voice coil: 1 "
• Midrange voice coil: 25.4 mm
• Horn: Waveguide
• Tweeter dimensions: 2 x1 "
• Tweeter dimensions (mm): 25.4 mm
• Tweeter magnet: Neodymium
• Tweeter brand: Custom-made
• Tweeter voice coil: 1 "
• Tweeter voice coil (mm): 25.4 mm
• Loudspeaker inputs: 1
• Speaker input connections: Custom-made multipin
• Cabinet construction mid/high: Closed
• Mid/Hi system cabinet material: aluminium
• Mid/Hi system cabinet surface: HD coating
• Mid/Hi system width: 96 mm
• Mid/Hi system height: 620 / 730 mm
• Mid/Hi system depth: 104 mm
• Mid/Hi system weight: 5.4 / 2.6 kg

Amplifier module (integrated in subwoofer)
• Amplifier: Class D
• Amplifier output system (RMS): 500 W
• Amplifier output system (peak): 1000 W
• Protection circuits DC protection , Multiband limiter , short circuit , thermal overload
• Cooling Convection
• Operating Temperature 0 - 40 °C
• Humidity Range 10% to 80%, (non-condensing)

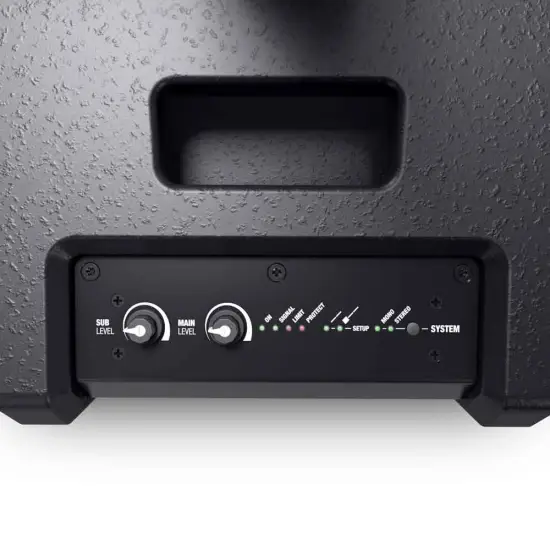

• Controls Bluetooth switch , Hi-Z Level , Line level , Main level , Mono/stereo switch , MP3/Bluetooth Level , Power , Sub level
• Indicators: Limit , mono , On , Protect (protection circuit engaged) , Setup , Signal , stereo
• Power connector: IEC power cable (included)
• Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
• Power consumption Off / On / Max.: 0/11/600 W
• Line inputs: 2 x stereo
• Line input connectors: RCA , XLR/6.3 mm jack
• Line outputs: 1 x direct out
• Line output connectors: XLR
• Mic inputs: 1
• Mic inputs: XLR/6.3 mm jack
• MP3 inputs: 1
• MP3 input connectors: 3.5 mm jack
• Hi-Z inputs: 1
• Hi-Z input connectors: 6.3 mm jack
• Loudspeaker outputs: 1
• Speaker output connections: Custom-made multipin

DSP characteristics
• Bit depth AD/DA converter: 24 bit
• Internal sampling frequency: 48 kHz
• Signal/noise ratio: 100 dB

SKU: AUD3822

EAN: 4049521206498
