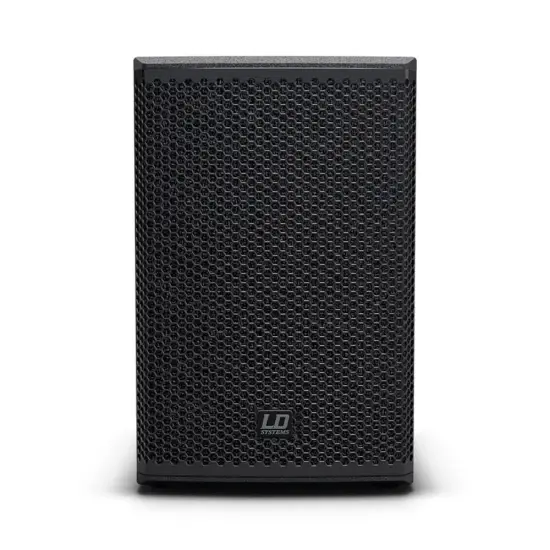

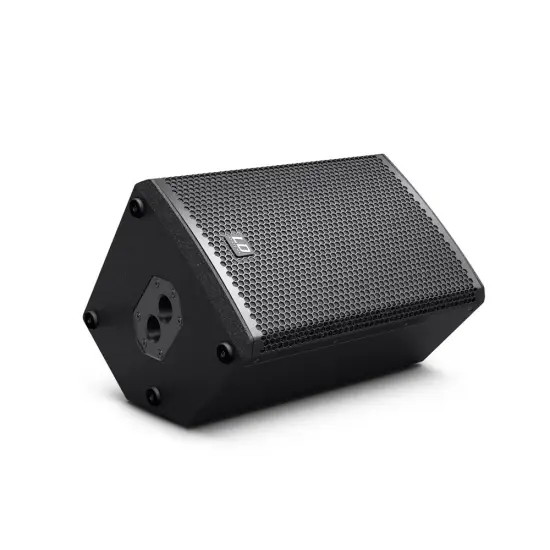

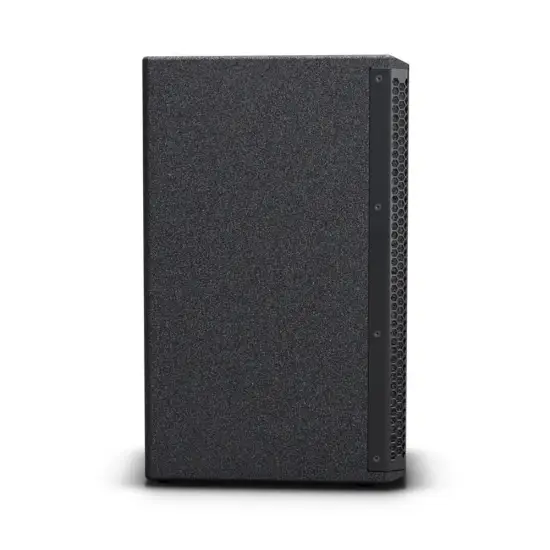

LD Systems COLUNA PASSIVA Stinger MIX 10 G3
LD Systems COLUNA PASSIVA Stinger MIX 10 G3
249.00€
Sem impostos: 202.44€
Pontos necessários: 24900
LD Systems - COLUNA PASSIVA Stinger MIX 10 G3:
Passive 2-Way Slave Loudspeaker to LD Systems MIX 10 A G3
This passive 2-way loudspeaker has been designed as a companion to the active MIX 10 A G3 for small-scale PA and personal monitoring applications. It features the same 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.
The compact bass reflex enclosure is constructed with tough birch plywood sporting a speakON-compatible input, 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. In a master-and-slave setup with the active unit , the MIX 10 G3 provides amazing performance and versatility in a lightweight, easily portable package.
- Passive 2-way loudspeaker
- Ideal as a slave to MIX 10 A G3
- 10” custom woofer and 1” Celestion HF driver
- 200 watts RMS power handling
- 121 dB maximum SPL
- Rugged birch ply cabinet
- Shock-resistant front grill provides maximum speaker protection
- 36 mm dual-tilt pole receptacle for 0° or 5° orientation
Product type PA loudspeaker
Type passive
Low/mid driver dimensions 10 "
Woofer size 254 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 "
Woofer voice coil (mm) 50.8 mm
Horn CD horn
HF driver dimensions 1 "
HF Driver Size 25.4 mm
HF driver magnet Ferrite
HF driver brand Celestion
HF driver voice coil 1 "
HF Driver Voice Coil 25.4 mm
Dispersion (H x V) 80 x 70 °
Load rating (RMS) 200 W
Peak power 400 W
Frequency response 65 - 20.000 Hz
SPL (1W/1m) 95 dB
Max. SPL 121 dB
Impedance 4 Ohm(s)
Protection circuits HF Driver
Loudspeaker inputs 1
Speaker input connections Speakon compatible
Cabinet material 16 mm Plywood
Cabinet surface PA painting
Cabinet construction vented
Monitor angle 50 °
Width 315 mm
Height 489 mm
Depth 307 mm
Features dual-tilt flange (0°/5°) , Ergonomic handle
Weight 10,8 kg
