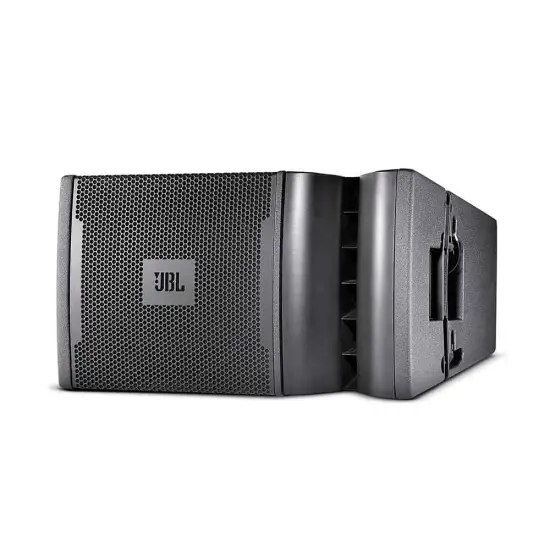

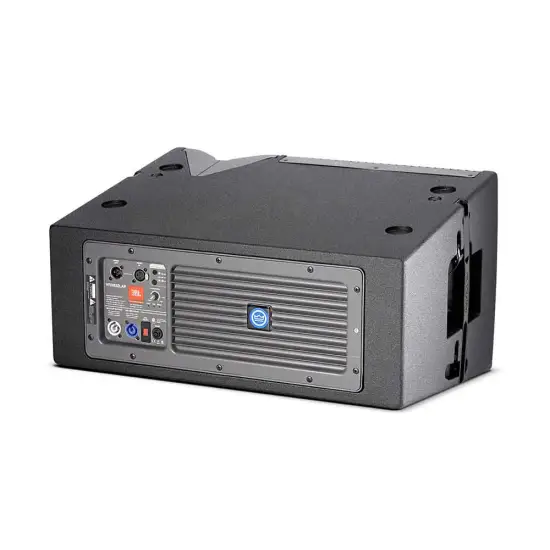

JBL VRX932LAP

3 112.00€

Baseada em 0 comentários - Escreva um comentário

Qtd

Adicionar

COMPRAR Comprar

Adicionar à lista de favoritos Comparar este produto

Com a SeQura, flexível e sem complicações.

Descrição
Características Fornecedor

JBL - COLUNA AMPLIFICADA VRX932LAP:

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.

• JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.

• VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.

• Constant Curvature waveguide for unprecedented array coherence.

• Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.

• Array Configuration Selector permits "array shading".

Power Rating:

• 1750 Watts Peak

• 875 Watts Continuous

Frequency Range:

• 57 Hz - 20 kHz

• (-10 dB)

Dimensions (H x W x D):

• 349 mm x 597 mm x 444 mm

• (13.75 in x 23.5 in x 17.5 in)

Frequency Response:

• 75 Hz - 20 Hz

• (+/-3db)

Maximum Peak Output: 136 dB SPL at 1m

Coverage Pattern: 100 x 15 nominal

DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance): LF: 750 Watts, HF: 125 Watts

DPC-2 Output Sectoin: LF: Dual-Bridged Technology™, Class D

Audio Input Connector: XLR with loop through

LF Driver: 1 x JBL 2262FF 305 mm (12 in) neodymium magnet

HF Driver: 3 x JBL 2408J, 38 mm (1.5 in)

User Controls: Input Attenuator (0-16 dB)

Signal Processings: DSP based, resident in Input Module

AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60 Hz

AC Input Connector: Neutrik PowerCon (NAC 3MPA)

AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)

AC Current Requirements: 6A per system at 120V, 3A per system at 240V

Enclosure: 25/15 mm, 11-ply birch plywood

Suspension / Mounting: Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting

Finish: Black DuraFlex™ finish

Grille: Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam

Net Weight: 24 kg (52 lb)

Optional Accessories: VRX-AF: Suspension array frame

SKU: AUD3378
