LD Systems SISTEMA MICROFONES MAO WIN 42 HHD 2 B 5

1 000.00€

Baseada em 0 comentários - Escreva um comentário

Qtd

Adicionar

COMPRAR Comprar

Adicionar à lista de favoritos Comparar este produto

Simula no checkout após adicionar ao carrinho.

Descrição
Características Fornecedor

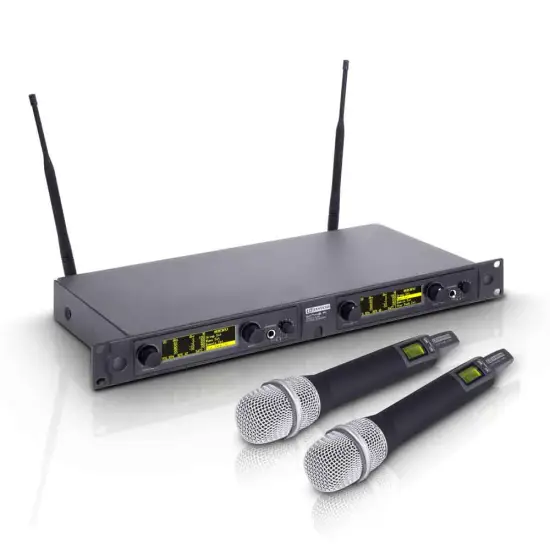

LD Systems - SISTEMA MICROFONES MAO WIN 42 HHD 2 B 5:

Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system.

With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 516 MHz to 558 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules).

• UHF frequency range 516 - 558 MHz

• 1680 frequencies

• 20 groups with 577 fixed frequencies

• user bank with 1680 freely selectable frequencies in 25 kHz increments

• 255 addresses selectable

• channel scan

• true diversity receiver

• interchangeable microphone capsules (dynamic / condenser)

Receiver display

• volume

• radio frequency level antenna A/B

• audio level

• battery status of transmitter

• transmitter sync via infrared

• squelch setting in menu

• equalizer setting in menu

• naming template in menu

• 10 sets storable

• lockable menu

• balanced XLR output, unbalanced 6.3 mm jack

• adjustable output

• adjustable headphone output

Transmitter Display

• battery status

• RF power

• AF power

• additional system information

Product number: LDWIN42HHD2B5

• Product type: Wireless Microphone Systems, Wireless Microphone System Accessories, Wireless Microphone System Accessories

• Type: Handhelds, Receivers, 19" Rack Kits

• Transmission frequency range: 516.000 - 558.000MHz, 516.000MHz

• Weight: 2.95kg, 2.4kg, 0.2kg

LDWIN42R2B5 - Dual Receiver

• Modulation Type: FM

• Channels: 2 x 1680

• Groups: 2 x 20 groups + 1 user group

• Antenna inputs: 2

• Antenna connector: TNC

• Frequency response: 60Hz

• Noise reduction: squelch

• Transmission optimization: address allocation

• THD: < 1 %

• Signal-to-noise ratio: > 100dB

• Audio output, balanced: 2 x XLR

• Audio output, unbalanced: 2 x 6.3 mm TS

• Audio mix output, unbalanced: 6.3 mm Jack

• Max. output level: + 10dBu

• Headphones ouput: 2

• Headphones outputs: 6.3 mm TRS

• Controls: 2 x headphones level, 2 x menu, 2 x mains switch / volume

• Indicators: 2 x multifunction LC display

• Operating voltage: External Power Supply, 13.5 V DC, 1,000 mA

• Width: 480mm

• Height: 44mm

• Depth: 190mm

• Accessories (included): 2 x TNC adapter, 2 x antenna, batteries, User's manual, 2 x TNC cable, power supply

• Other features: channel search function, IR frequency synchronisation

LDWS100RK - 19" Rack Kit

• Colour: black

• Material: steel

• Surface: powder coated

LDWIN42MDB5 - Dynamic handheld microphone

• Product type: Wireless Microphone System Accessories

• Type: Microphones

• Transmission frequency range: 516.000MHz

• Channels: 1680

• Groups: 20 groups + 1 user group

• Microphone type: dynamic

• Directivity: cardioid

• Frequency response: 60Hz

• Rated HF output power: Variable (10, 30, 50 mW)

• Controls: select, set, mute, Power

• Indicators: multifunction LC display

• Operating voltage: 2 x AA battery

• Operating time: >13 h (with alkaline batteries)

• Length: 255mm

• Diameter: 52mm

• Weight: 0.35kg

• Other features: Transmission power adjustable in 3 stages, incl. batteries, IR frequency synchronisation, Interchangeable microphone head, Adjustable audio sensitivity, Battery status indicator

SKU: AUD3485

EAN: 4049521204975
